佳鑫能外牙式金属软管接头

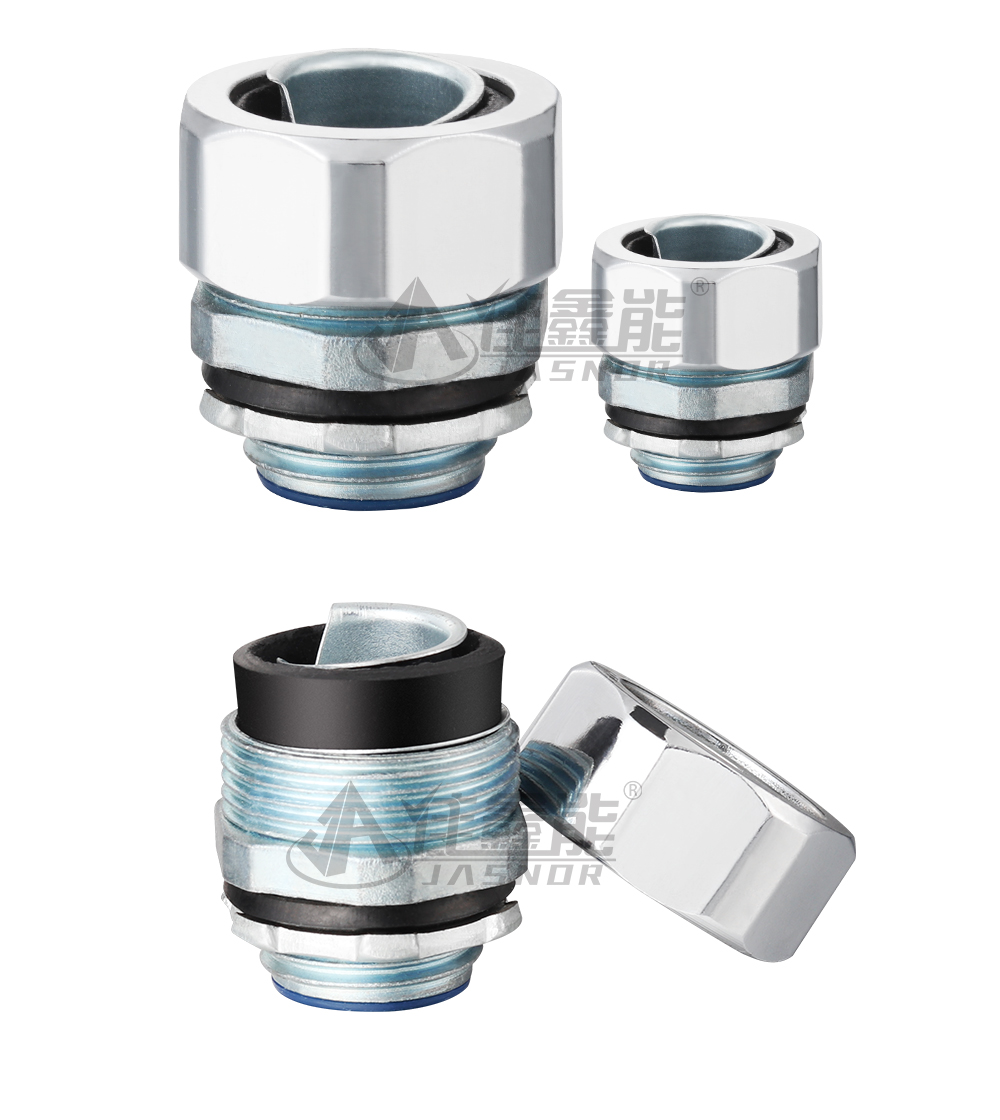

外牙式金属软管接头

公制螺纹M系列

广州佳鑫电器有限公司

咨询热线：020-36700481

公司网站：http://www.jx218.com

24H服务热线：13728087739

螺纹规格:英制G(PF)、公制(Metric)、德制PG牙,符合欧盟规范。

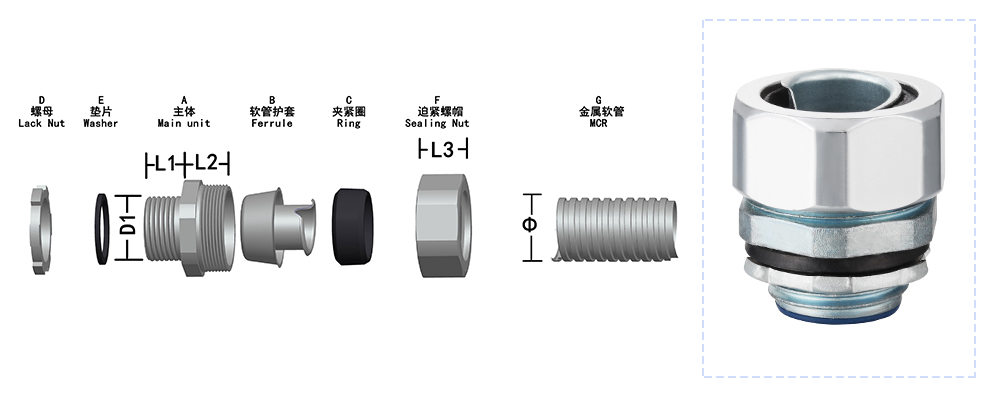

产品材质:A.B.F部位采用优质加厚型锌合金制成、C.E部分采用丁腈橡胶制成、D为铁材料制成。

颜色:金属色（银白色)

温度:- 40℃~ +100℃、短时可达+120℃防护等级:IP65

产品特性:1、加享型锌合金镀锌或镀铬、外型美观、结构紧密、强度高;

               2、软管护套设计与软管相扣接紧之设计、装配省时便利，抗拉力强;

               3、防水、防尘、抗盐、耐酸碱、酒精、油、脂及一般溶剂;

               4、除以下标准规格外，可按要求任意变动大小及螺纹标准;

Specification for metal hose joint thread: gb, Mefyic, PG

Product material:AB.F part is made of high-quaity and thickened zinc ly, C.Epat is made of ritile rubber, and D is made ofiron material

color: metal color (silver white)

The temperature: - 40 ℃~+100 ℃ , short time can be up to + 120 ℃

Protection level: IP65

Product features: 1, thickening zinc aloy zinc or chromium plating, beautful appearance, compact stucture, high strength

                            2.The design of flexible pipe jacket and the comnection between flexible pipe, saving tme and conveniert assembly, and stiongtensile strength.

                            3, waterproof , dustproof, salt resistance, acid and alkali resistance, alcohol, oil, fat and general solvents

                            4, in addition to the folowing standard gauge, according to the requirements of abtrary changes in size and thread standards

外牙式金属软管接头

公制螺纹M系列
