金属铠装防爆防水接头连接器
防水接头连接器公制螺纹M系列
咨询热线：020-36700481
公司网站：http://www.jx218.com
24H服务热线：13728087739
防水接头连接器螺牙规格:公制牙M(Metric)，符合欧盟规范。

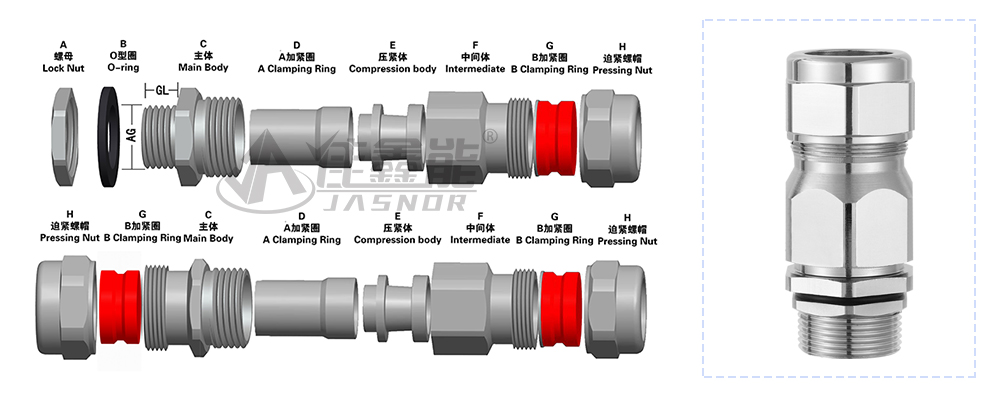

防水接头连接器产品材质:接头主体部位采用黄铜镀镍制成，夹紧件采用尼龙塑料(PA）制成，密封件和〇型密封圈均用丁腈橡胶（NBR）制成。产品认证:欧洲CE认证、欧洲 ROHS 认证。
防水接头连接器防护等级:在规定的卡口范围内，并使用〇型密封圈旋紧迫紧头，可达到IP68-10巴压力。
防水接头连接器工作温度:
静态:-40℃到100℃，短时间达120℃。
动态:-20℃到80℃，短时间达100℃。
防水接头连接器螺纹长度:短螺纹适合用于薄型机板的开孔或附有内螺纹的设备上，长螺纹适合接合厚型机板。螺纹加长型可定制。
防水接头连接器产品特性:本产品经特殊设计，将电缆穿入本固定头时，可利用固定头上附加弹簧结构保护电缆不受弯曲而造成损伤，可延长电缆寿命及增强安全性，并且扎实的提供防水防尘IP68保护与固定抗拉力效果。
防水接头连接器选择:可根据客户实际需要，特别定制。需要订购时欢迎来电咨询。
Guangzhou Jiaxin Electric Appliance Co., Ltd
Hotline: 020-36700481
company website: http://www.jx218.com
24h service hotline: 13728087739
Screw tooth size:Metric tooth Metric
Material: the main body of the joint is made of nickel plated brass, the clamping part is made of nylon plastic(PA),the sealirg partand o-ring are made of NBR.
Product certification: European CE certification, European ROHS certification
Protection grade in the specified bayonet range, and the use of o-type sealing ring screw pressing head, up to p68-10 barpressure.
Working temperature: static:- 40 ℃ to 100 ℃ , a short period of time up to 120 ℃.Dynamic:- 20 ℃ to 80 ℃ , a short period oftime up to 100 ℃
Thread length: short thread is suitable for opening of thin machne plate or equipment with intenal thread long thread is suitablefor joining thick machine plate. Thread lengthening type can be customized.
Product features: this product is specially designed, the metal cable fixed head as a side body, when shielded wre cable into thefixed head, can use a fxed head insidle the copper shield springs attached to with cable inside the metal net make contact, andthen guide the interference of electromagnetic wave to the grounding line, to evacuate electromagnetic interference sources. Theful dmension of this copper cable fixing head can be fuly appled to all outgoing fields requiring arti-magnetic wave, and sofidyprovide waterproof IP68 and fixed tensile effect.
More options: according to the actual needs of customers, customized. Welcome to inquire when you need to order,
金属防折弯防水接头连接器
公制螺纹M系列
| 产品编号Item.No. | 螺牙规格Thread | 适用电缆Φ（mm）Cable Range | 螺纹外径AG(mm) Thread O.D | 机板口径(mm) Panel Mounting Hole | 螺纹长度GL(mm) Thread length | 接合长度(mm) Joint length | 扳手径(mm) Spanner Size |
| NBE-M10-06 | M10x1.5 | 6.5-3 | 10 | 10-10.2 | 6 | 55 | 14 |
| NBE-M12-06 | M12x1.5 | 6.5-3 | 12 | 12-12.2 | 6 | 55 | 14 |
| NBE-M12-08 | M12x1.5 | 8--4 | 12 | 12-12.2 | 7 | 66 | 14/17 |
| NBE-M14-06 | M14x1.5 | 6.5-3 | 14 | 14-14.2 | 6 | 66 | 14/16 |
| NBE-M14-08 | M14x1.5 | 8--4 | 14 | 14-14.2 | 7 | 66 | 16/18 |
| NBE-M16-08 | M16x1.5 | 8--4 | 16 | 16-16.2 | 7 | 66 | 17/18 |
| NBE-M16-10 | M16x1.5 | 10--6 | 16 | 16-16.2 | 7 | 77 | 20/20 |
| NBE-M18-10 | M18x1.5 | 10--6 | 18 | 18-18.2 | 7 | 77 | 20/20 |
| NBE-M20-12 | M20x1.5 | 12--8 | 20 | 20-20.2 | 8 | 88 | 22/22 |
| NBE-M22-14 | M22x1.5 | 14--10 | 22 | 22-22.2 | 8 | 98 | 24/24 |
| NBE-M25-14 | M25x1.5 | 14--10 | 25 | 25-25.2 | 8 | 98 | 27 |
| NBE-M25-16 | 16--11 | 25 | 25-25.2 | 8 | 111 | 27/28 | |
| NBE--M25-18 | 18-13 | 25 | 25-25.2 | 8 | 111 | 27/30 | |
| NBE-M27-18 | M27x1.5(2) | 18-13 | 27 | 27-27.2 | 8 | 111 | 30 |
| NBE-M28-18 | M28x1.5(2) | 18-13 | 28 | 28-28.2 | 8 | 111 | 30 |
| NBE-M30-18 | M30x1.5(2) | 18-13 | 30 | 30-30.2 | 8 | 111 | 30/34 |
| NBE-M32-22 | M32x1.5(2) | 22-15 | 32 | 32-32.2 | 9 | 111 | 34 |
| NBE-M33-22 | M33x1.5(2) | 22-15 | 33 | 33-33.2 | 9 | 111 | 34/36 |
| NBE-M36-25 | M36x1.5(2) | 25-18 | 36 | 36-36.2 | 9 | 118 | 40 |
| NBE-M37-25 | M37x1.5(2) | 25-18 | 37 | 37-37.2 | 9 | 118 | 40 |
| NBE-M40-25 | M40x1.5(2) | 25-18 | 40 | 40-40.2 | 10 | 118 | 43 |
| NBE-M40-30 | 30-22 | 40 | 40-40.2 | 10 | 118 | 45 | |
| NBE-M42-28 | M42x1.5(2) | 28-22 | 42 | 42-42.2 | 10 | 126 | 45 |
| NBE-M47-32 | M47x1.5(2) | 32-25 | 47 | 47-47.2 | 10 | 126 | 50/52 |
| NBE-M48-32 | M48x1.5(2) | 32-25 | 48 | 48-48.2 | 10 | 126 | 50/52 |
| NBE-M50-38 | M50x1.5(2) | 38-32 | 50 | 50-50.2 | 10 | 136 | 50/55 |
| NBE-M54-38 | M54x1.5(2) | 38-32 | 54 | 54-54.2 | 12 | 136 | 58 |
| NBE-M56-38 | M56x1.5(2) | 38-32 | 56 | 56-56.2 | 12 | 136 | 58 |
| NBE-M60-44 | M60x1.5(2) | 44-37 | 60 | 60-60.2 | 12 | 146 | 64 |
